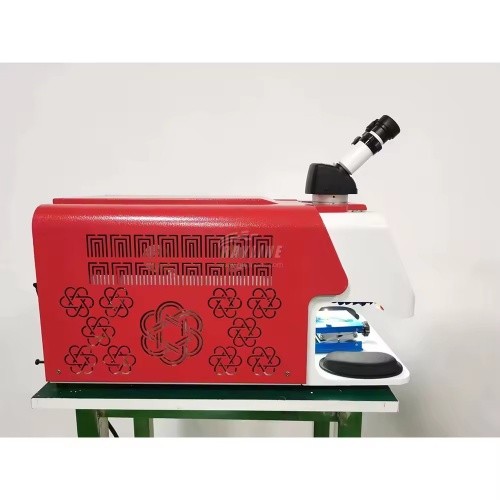

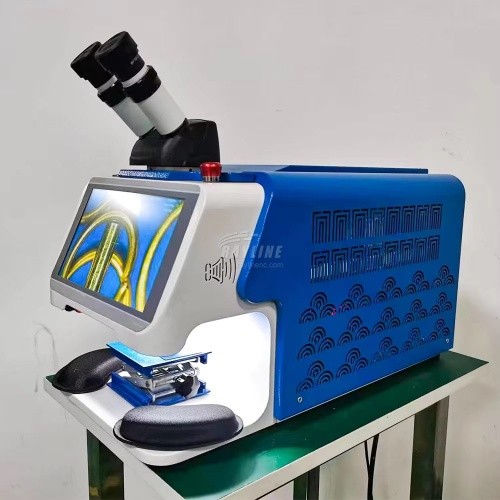

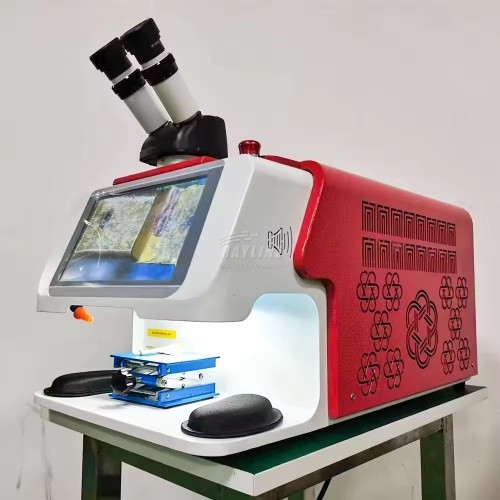

Mini 200W YAG Spot Jewelry Laser Welder

Built-in water cooling
Silver gold all metals
Laser Solder
Jewelry Welder
100J YAG Laser Welding
precision soldering

Name	Laser Jewelry Welding Machine, Laser Spot Welding Machine,Jewelry Welder
Model	RA-VR60	RA-VR100	RA-VR150	RA-VR200
Laser Power	60W	100W	150W	200W
Laser Wavelength 1064mm	1064mm	1064mm	1064mm	1064mm
Volage Regulating(Customized)	100-400VDC	100-400VDC	100-400VDC	100-400VDC
Pulse width	0.1-20ms	0.1-20ms	0.1-20ms	0.1-20ms
Beam Diameter	0.2-2mm	0.2-2mm	0.2-2mm	0.2-2mm
Laser Welding Working Distance	100-300mm	100-300mm	100-300mm	100-300mm
Aiming and Positioning	Microscope +CCD (Combined)	Microscope +CCD (Combined)	Microscope +CCD (combined)	Microscope +CCD (combined)
Power	≤5KW	≤6KW	≤6KW	≤6KW
Machine Dimension	542929cm	542929cm	542929cm	542929cm
Machine Net weight	30.5kg	30.5kg	30.5kg	30.5kg
Language	English, Russian, French, Korean, Portugal (Customized)
Application	Good at welding and repairing for jewelry, gold, necklace, glasses, dental, etc. Materials for welding and repairing can be gold, silver, aluminum, stainless steel, titanium, nickel, copper, etc.
