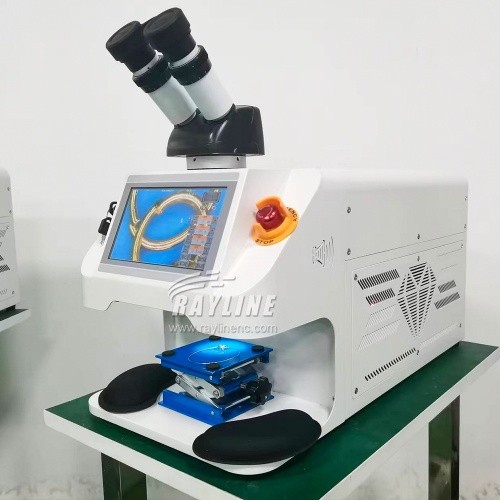

60W 100W 150W 200W Silver Gold Jewelry Laser Welding Machine

Model

RA-VR60

RA-VR100

RA-VR150

RA-VR200

Laser Power

60W

100W

 150W

 200W

Laser Wavelength 1064mm

1064mm

1064mm

1064mm

1064mm

Volage Regulating(Customized)

 100-400VDC

 100-400VDC

 100-400VDC

 100-400VDC

Pulse width

0.1-20ms

0.1-20ms

0.1-20ms

0.1-20ms

Beam Diameter

0.2-2mm

0.2-2mm

0.2-2mm

0.2-2mm

Laser Welding Working Distance

100-300mm

100-300mm

100-300mm

100-300mm

Aiming and Positioning

Microscope +CCD (Combined)

Microscope +CCD (Combined)

Microscope +CCD (combined)

Microscope +CCD (combined)

Power

≤5KW

≤6KW

≤6KW

≤6KW

Machine Dimension

54*29*29cm

56*29*29cm

54*29*29cm

58*35*29cm

Machine Net weight

28KG

28KG

28KG

28KG

Language

English, Russian, French, Korean, Portugal (Customized)

Application

Good at welding and repairing for jewelry, gold, necklace, glasses, dental, etc. Materials for welding and repairing can be gold, silver, aluminum, stainless steel, titanium, nickel, copper, etc.
