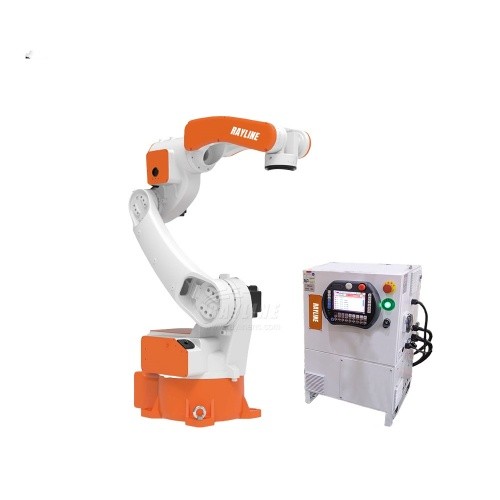

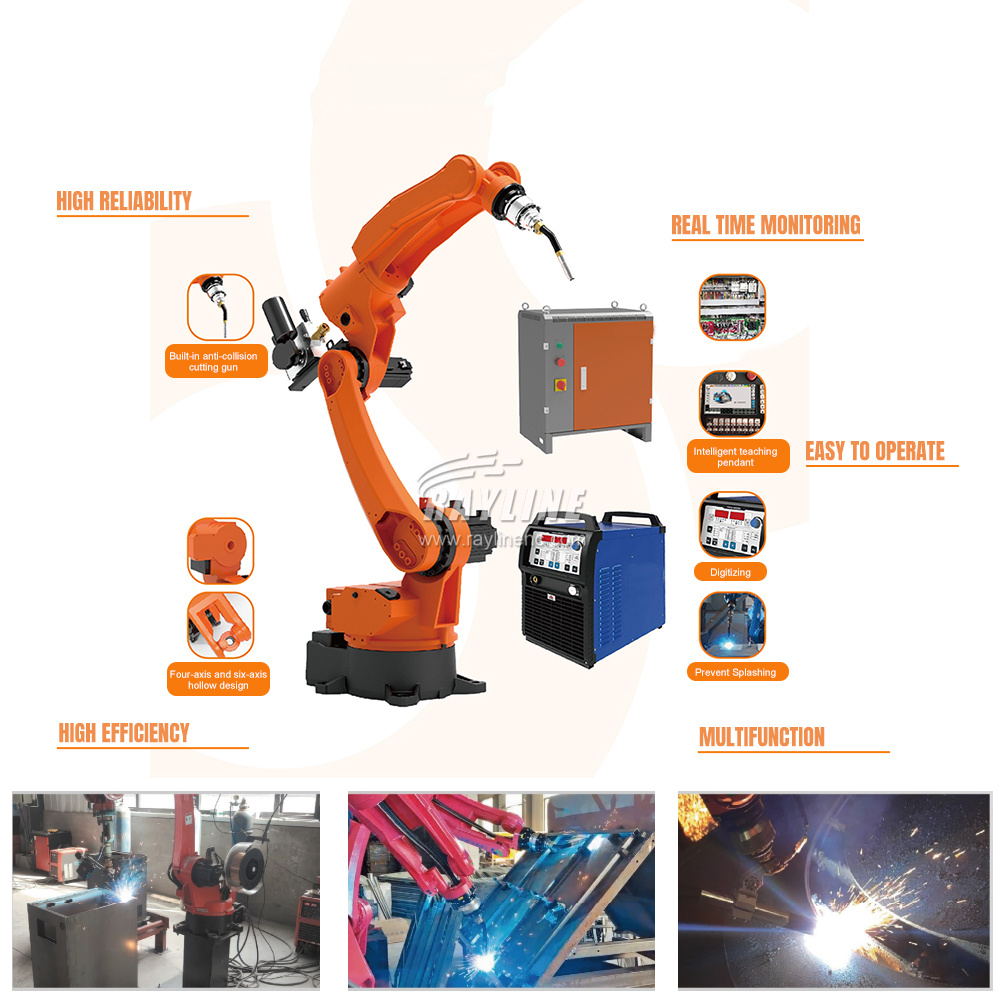

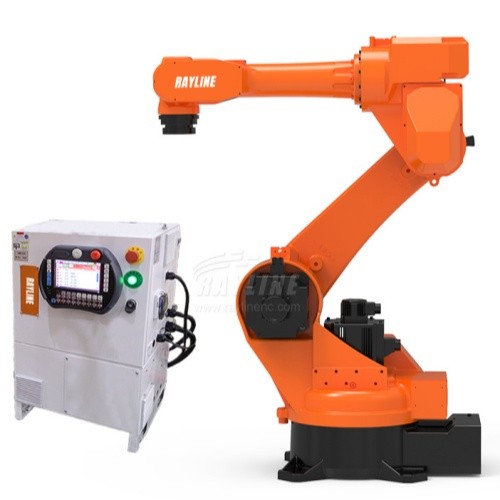

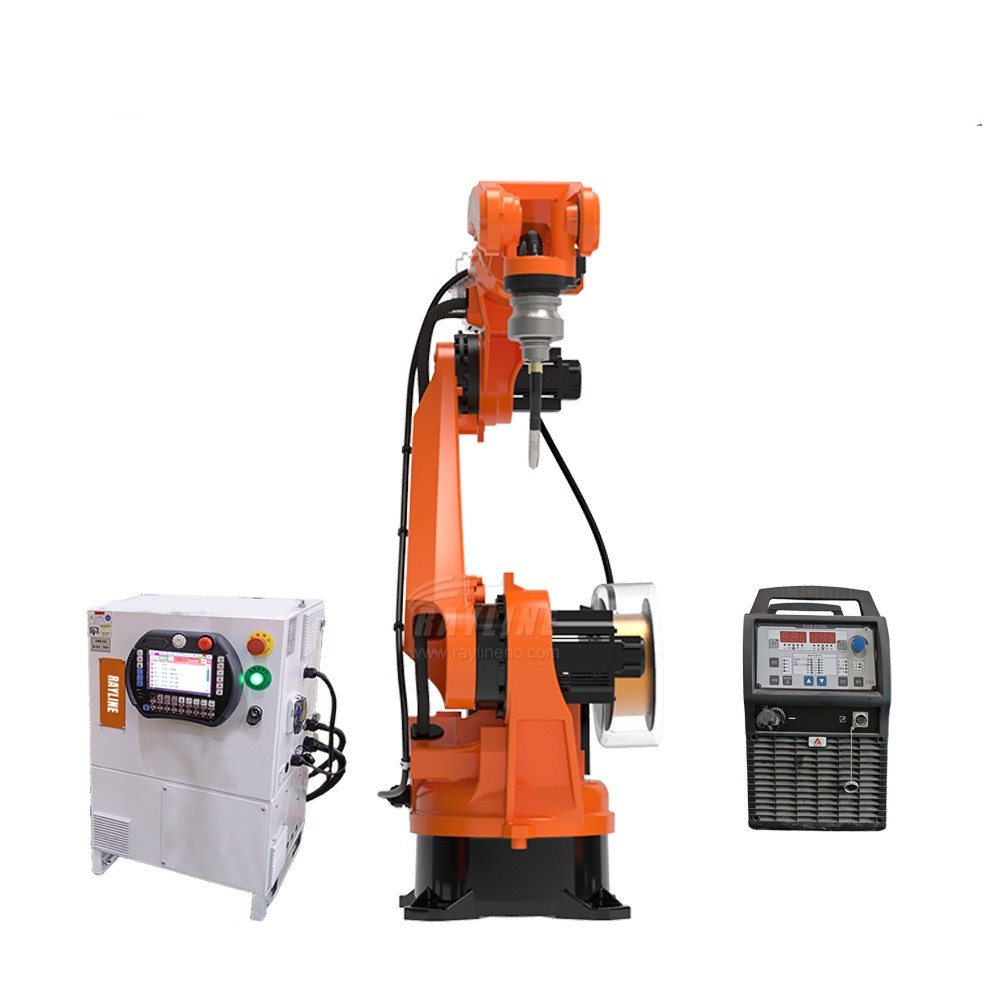

Industrial 6 Axis 10M Long Arm Welding Robot

Axis

6 Axis

Capacity

3KVA

Body weight

170KG

Rated payload

6KG, 8KG, 10KG,

Max range

150CM, 200cm

Repeatability

±0.08MM

IP Grade

IP54/IP65(Wrist)

Installation

Ground,Ceiling

Temperature

0℃~45℃

Humidity

20%-80%(No-Humidity)

Vibration

≤4.9M/S²

Others

No flammable and corrosive gases, liquids, away from electrical noise sources

J1

±165°

145°/S

 -

J2

+80°~-150°

133°/S

 -

J3

+125°~ -75°

145°/S

 -

J4

±170°

217°/S

Φ27

J5

+115°~ -140°

172°/S

 -

J6

±220°

500°/S

Φ45
