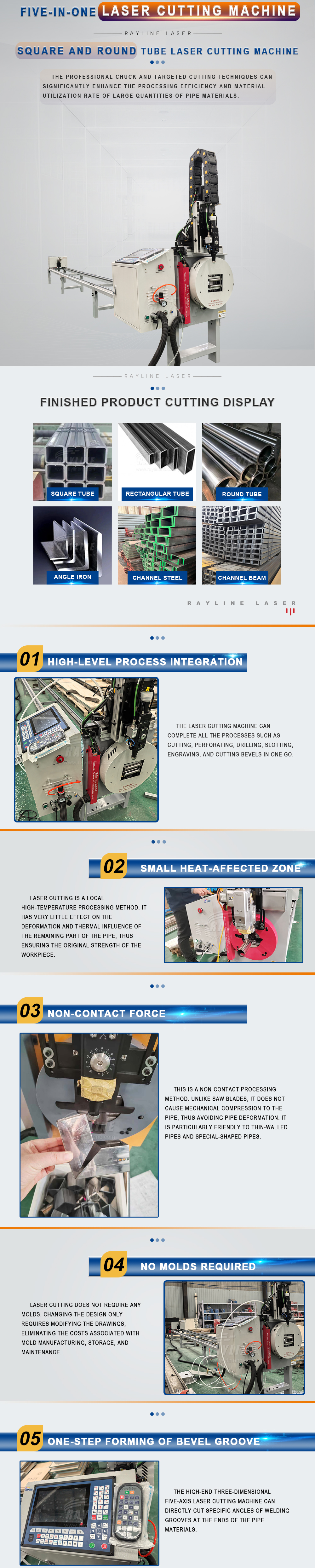

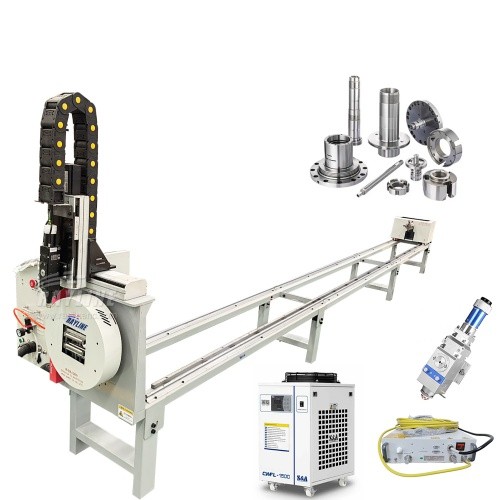

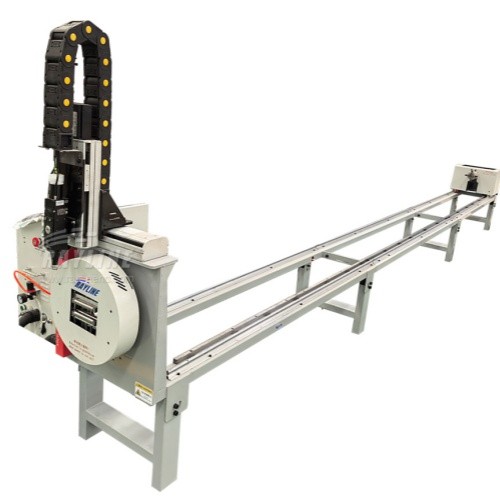

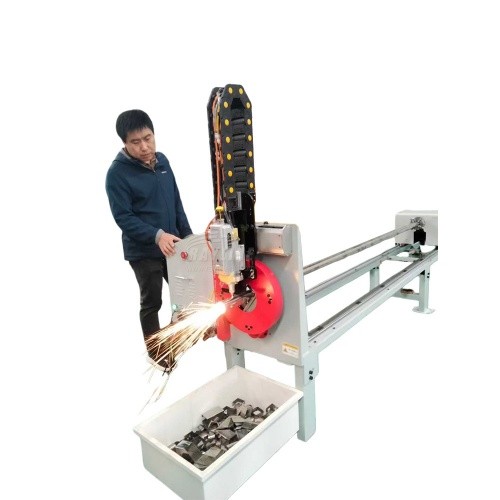

5-in-1 Laser Tube Pipe Angle Iron Cutting Machine

Round Tubes Cutting Diameter

 20-114 mm,Support customization

Square or Rectangular Tubes Cutting Diameter

20-100 mm,Support customization

Angle iron and channel steel cutting side length

63mm,Support customization

Effective Cutting Length

6 mm (depending on laser size)

Cutting Method

Fiber Laser Cutting

Control System

Laser-guided Square and Round Tube Control System

Automatic Lifting System

Support

Automatic Nesting Software

lTubeCAM (optional for cutting angle iron and channel steel)

Laser Power

1500w/2000w/3000w

Cutting Accuracy

±0.5 mm

Reset Accuracy

±0.01 mm

Cutting Speed

Square Tubes 0-4000 mm/min; Round Tubes 0-8000 mm/min

Device Dimensions

6600 mm*500 mm*1100 mm (subject to actual product)

Device Weight

250 kg

Power Supply Voltage

220V/380V±10V  50Hz/60HZ

Machine power

23kw

Air Source

Oxygen, nitrogen, or dry air

Drive Method

Rack and Pinion Drive

Guide Rails

Double-Sided Cylindrical Guides

Chuck Device

Front Manual Universal Chuck, Rear Manual Four-Jaw Chuck

Loading Method

Manual Loading - Automatic Feed Cutting

Machine Language

Italian, Dutch, English, Spanish, French, German, Hungarian, Russian, Japanese, Korean, Dutch, Polish, Portuguese, Danish, Ukrainian, Vietnamese, Thai, Chinese, etc.

After-sales Service

Online one-on-one after-sales service, and free software upgrades and usage forever.
